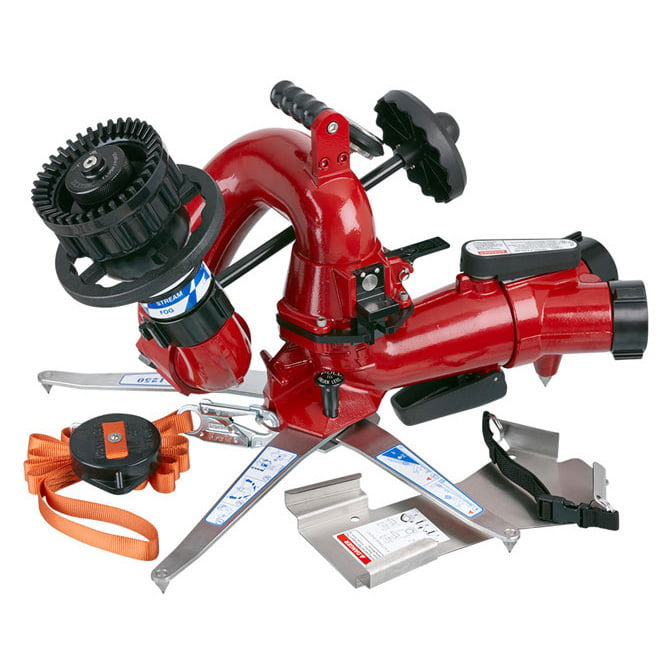

CROSS FIRE Portable/Deck Gun Monitor
Monitor shall be portable lightweight consisting of monitor top, Automatic Nozzle flow 300-1250 GPM, and portable base with storage bracket shall be supplied.
The top only portion with quick release swivel joint shall be designed for use on truck mounted risers and portable bases. The monitor shall include safety devices that include a locking button which locks the quick release lever when monitor is pressurized, and a 1/4 turn rotational lever lock that secures the horizontal rotation and provides a visual indication that the monitor rotation is locked. For corrosion resistance the monitor shall be constructed from hardcoat anodized aluminum with a red powder coat interior and exterior finish.
Choose Quantity
₹500,000.00 ₹575,000.00
Product Details
The monitor shall have a 3-1/4" waterway for delivery of up to 1250 GPM with low friction loss. Vertical elevation shall be controlled through use of a handwheel controlled stainless steel worm gear which allows full travel to the safety stop point of 35 degrees above horizontal with seven rotations of the wheel. When positioned on a truck mounted riser the monitor shall be able to be used below the 35 degree stop point through release of the spring loaded safety pin.
An automatic drain to remove remaining water and avoid freezing shall be included. Integral stainless steel stream straightener and pressure gauge shall be included.
The monitor base shall include a Safe-Tak, spring loaded butterfly valve designed to rapidly reduce the water flow by 90 percent in the event that contact with the ground is lost. The device shall include an integral carrying handle, four folding stainless steel legs with replaceable tungsten carbide spikes and an anchoring strap attached to a protective cap designed to be stored inside the waterway. The butterfly valve shall have a reset handle located near the inlet to allow the water flow to be reestablished once the base is properly stabilized.
The base shall be constructed from hardcoat anodized aluminum and have a red powder coat interior and exterior finish. The base shall have a dual hose inlet with clapper valve. A storage bracket for the portable base shall be included.
Master Stream Automatic Pressure Control nozzle shall be provided. The nozzle shall be designed for use on monitor. For corrosion resistance the nozzle shall be constructed for lightweight hardcoat anodized aluminum.
The nozzle shall have a UV resistant rubber bumper with integral teeth designed to produce a finger free fog pattern shall be included. A halo ring shall be included to assist with stream shape control. The nozzle shall be suitable for foam solution application and designed to accept the low expansion air aspirating attachment. The nozzle shall be configured with a female swivel rocker lug coupling. The components shall be covered by a five-year warranty.
